Many researchers have commented on the similarity between qubit development and transistors. We thought it was about time we looked at the history of the fundamental unit of classical computing: the transistor and the integrated circuit which embodies the transistor.

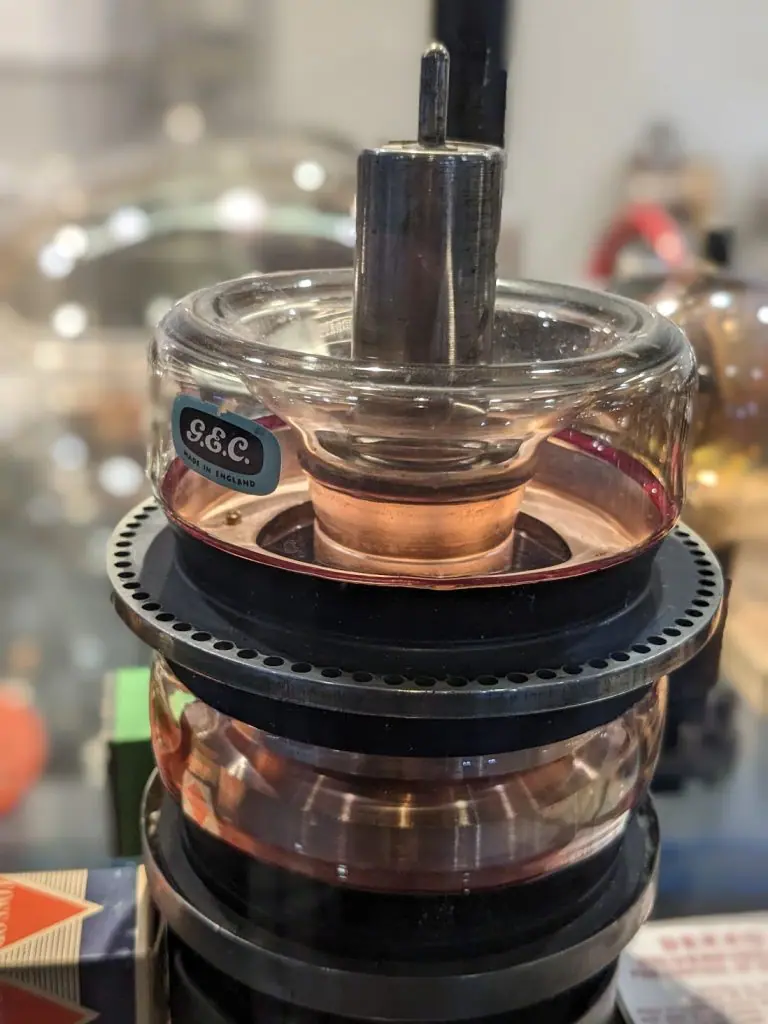

Before the transistor: The Valve
The valve, also known as a vacuum tube or thermionic valve, was one of the earliest electronic components used in various devices, including radios, televisions, and computers, before the advent of transistors.
Sir John Ambrose Fleming invented the first vacuum tube in 1904 while working at the University College London. He discovered that by passing an electric current through a vacuum, electrons could be emitted from a heated metal filament and detected by a positively charged plate, creating a one-way current flow.
In 1906, Lee De Forest invented the triode, a three-element vacuum tube that enabled the amplification of electrical signals. This allowed for the development of the first electronic amplifier, which was used in radios and telephones.
During World War II, vacuum tubes were widely used in military applications, including radar systems and code-breaking machines. In the 1940s and 1950s, the use of vacuum tubes in computing systems, such as the ENIAC, helped usher in the modern era of computing.
However, vacuum tubes were bulky, fragile, and consumed a lot of power, making them impractical for many applications. The invention of the transistor in 1947 by William Shockley, Walter Brattain, and John Bardeen at Bell Labs revolutionized the field of electronics, leading to the development of smaller and more efficient electronic devices.
The origin of the Transistor
The transistor is a semiconductor device that revolutionized the field of electronics and paved the way for the development of modern electronic devices, such as computers, mobile phones, and televisions. The invention of the transistor is considered one of the most important scientific breakthroughs of the 20th century.
In 1947, William Shockley, Walter Brattain, and John Bardeen, researchers at Bell Labs in Murray Hill, New Jersey, developed the first transistor. The invention was a result of their efforts to develop a solid-state replacement for the bulky and fragile vacuum tubes that were widely used in electronic devices at the time.
The transistor was created by sandwiching a thin layer of semiconductor material, such as germanium or silicon, between two metal contacts. By applying a voltage to the metal contacts, the transistor could control the flow of current through the semiconductor layer. The ability to control the flow of current made the transistor a powerful tool for amplifying and switching electronic signals.
The invention of the transistor had several notable events and impacts:
- On December 23, 1947, Bell Labs publicly announced the invention of the transistor, leading to widespread recognition of its potential impact on the field of electronics.
- In the 1950s and 1960s, the use of transistors in electronic devices, such as radios, televisions, and computers, rapidly increased due to their smaller size, lower power consumption, and higher reliability compared to vacuum tubes.
- In 1956, the first transistorized computer, the TX-0, was built at the Massachusetts Institute of Technology (MIT), marking a significant milestone in the development of modern computing.
The development of the transistor led to the creation of the integrated circuit, which allowed for the mass production of transistors and other electronic components on a single chip. This paved the way for the development of microprocessors and other complex electronic devices.
The invention of the transistor was awarded the Nobel Prize in Physics in 1956, recognizing its significant impact on the field of electronics.
How the Integrated Circuit happened
An integrated circuit (IC) is a semiconductor device that combines multiple transistors and other electronic components onto a single silicon chip. This integration allows for creating complex electronic circuits that are smaller, faster, and more efficient than discrete electronic components.
The development of the integrated circuit is credited to Jack Kilby and Robert Noyce, who independently invented the technology in 1958. Kilby, a researcher at Texas Instruments, created the first working IC by fabricating several transistors and other components on a single piece of germanium. Noyce, a co-founder of Fairchild Semiconductor and later Intel, developed a similar technology using silicon.
The invention of the integrated circuit had several notable impacts on the field of electronics:
- Integrating multiple transistors and other components onto a single chip reduced the size and weight of electronic devices and increased their reliability.
- The mass production of integrated circuits allowed for the creation of complex electronic circuits at a lower cost than discrete electronic components.
- The invention of the microprocessor, a complex integrated circuit that contains millions of transistors and other components, revolutionized the field of computing and paved the way for the development of personal computers and other modern electronic devices.
As the number of transistors on a single integrated circuit has increased, their size has decreased. This trend, known as Moore’s law, was first observed by Gordon Moore, co-founder of Intel, in 1965. Moore’s Law states that the number of transistors on a single chip doubles approximately every 18 to 24 months, while the cost per transistor decreases.
The increasing number of transistors on a single chip has allowed for the creation of more powerful and energy-efficient electronic devices, but it has also presented several challenges. One of the main challenges is the heat generated by the high-density packing of transistors, which can affect the performance and reliability of the device. To address this issue, researchers have developed new materials and designs to improve heat dissipation and reduce power consumption.
Another challenge is the difficulty of fabricating and aligning a large number of transistors on a single chip. The process of creating integrated circuits involves a complex series of steps, including photolithography, etching, and doping, that require precise control and highly specialized equipment. As the size of transistors has decreased, the process of fabricating integrated circuits has become increasingly complex and costly.
Latest innovations in IC
The field of integrated circuits (ICs) has seen a number of recent innovations in the areas of materials, design, and fabrication techniques. Here are some of the latest developments in the field:
3D ICs: One of the latest innovations in ICs is the use of three-dimensional (3D) integration, where multiple layers of transistors are stacked on top of each other to increase the density of components on a chip. This allows for more functionality in a smaller space and better performance. One example of a 3D IC is the HBM (High-Bandwidth Memory) used in graphics cards and other high-performance computing applications. HBM allows for faster data transfer between the memory and processor, resulting in better performance. You can learn more about the key potential applications of 3D ICs that have the most impact in terms of performance, power and, area inthis paper by IEEE.
Neuromorphic Computing: Another area of innovation in ICs is neuromorphic computing, which is based on the principles of the human brain. This innovation could completely transform everything in the technology industry from hardware to programming languages, read more about that here. Neuromorphic ICs are designed to mimic the way that neurons and synapses work, enabling them to perform tasks such as image and speech recognition more efficiently and with lower power consumption than traditional digital ICs.
Silicon Photonics: Silicon photonics is another area of innovation in ICs, which combines the properties of silicon with those of light. This technology enables the integration of optical components, such as lasers and photodetectors, with electronic circuits on a single chip. Silicon photonics can be used for applications such as data center interconnects, high-speed optical communication, and LiDAR (Light Detection and Ranging) for autonomous vehicles.
In this article, Synopsys highlights the advantages and challenges of Silicon photonics and how photonic and electronic circuits complement each other.
Quantum ICs: Quantum ICs are a new class of integrated circuits that exploit the properties of quantum mechanics to perform tasks such as cryptography and computation. These ICs use qubits, which are the basic units of quantum information, to perform calculations. Quantum ICs have the potential to revolutionize fields such as cryptography, drug discovery, and optimization.
This paper by R.T. Bate et al. reviews the progress of quantum integrated circuits and discusses the prospects for the future.
Conclusion
The transistor and the integrated circuit have been critical components in the development of quantum computing, which relies on qubits to perform calculations. Integrated circuits provide a platform for the fabrication and control of large numbers of qubits on a single chip, which is essential for scaling up quantum computing systems. As researchers continue to make progress in the development of quantum computing systems, the use of integrated circuits is likely to play an increasingly important role in this field.
