Nanoislands Switch Topology For NanoElectronics

Researchers have made a crucial step forward. They are harnessing the potential of nanostructures with specific electromagnetic patterns. These structures hold great promise for applications in nanoelectronics and future information technologies.

Scientists create and study nanoislands on silicon with unique, swirling polar textures. They have demonstrated the ability to stabilise these textures with an external electric field. They can also reversibly switch the textures using the field. The nanoislands are composed of BaTiO3. They form tiny, trapezoidal shapes on a silicon substrate. These nanoislands exhibit centred, downward convergent polarisation domains. Researchers can manipulate these domains to create chiral, topological textures.

This breakthrough in controlling the electromagnetic patterns at the nanoscale paves the way for potential applications in ultra-high-density data storage and extremely energy-efficient field-effect transistors, bringing innovative solutions to the forefront of future technologies.

Introduction to Nanoislands on Silicon

The field of nanoelectronics has been rapidly advancing, with a focus on creating nanostructures that can be used in future information technologies. One area of research involves the creation of nanoislands on silicon substrates, which exhibit unique electromagnetic patterns. These patterns have the potential to be used in applications such as ultra-high-density data storage and energy-efficient field-effect transistors. However, controlling these patterns has proven to be a significant challenge. A team of researchers at HZB has made a breakthrough in this area by examining a specific class of nanoislands on silicon with interesting chiral, swirling polar textures.

The research team, led by Prof. Catherine Dubourdieu, has published a paper in Nature Communications that explores the properties of these nanoislands and their potential for electrical manipulation. The team created BaTiO3 nanostructures that form tiny islands on a silicon substrate, with dimensions of 30-60 nm. These nano-islands have stable polarisation domains, which can be reversibly switched by an electric field. The domain patterns were studied using vertical and lateral piezoresponse force microscopy (PFM), as well as scanning transmission electron microscopy (STEM). The results show a centered, downward convergent polarization, with a swirling component around the nanoisland axis that causes chirality.

The ability to create and manipulate chiral, swirling polar textures in BaTiO3 nanostructures is promising for future applications. The research team has demonstrated that these textures can be stabilized by shaping nanostructures in an appropriate way. This work has the potential to open up new perspectives in the field of nanoelectronics, with possible applications in data storage and energy-efficient devices. The study was partially supported by the ERC Advanced Grant LUCIOLE (101098216), highlighting the importance of continued research in this area.

Properties of Nanoislands

The nanoislands created by the research team have unique properties that make them suitable for electrical manipulation. The BaTiO3 nanostructures are trapezoidal in shape, with dimensions of 30-60 nm on top. The team induced the nucleation of these nanoislands by fine-tuning the first step of the silicon wafer passivation. This process allows for the creation of stable polarisation domains, which an electric field can reversibly switch. The domain patterns were studied using PFM and STEM, providing a detailed understanding of the polarization behavior.

The results show that the nanoislands exhibit a centered, downward convergent polarization, with a swirling component around the nanoisland axis. This swirling component causes chirality, resulting in a texture that resembles a swirling vortex of liquid flowing into a narrowing funnel. The center down-converging nanodomains can be reversibly switched to center up-diverging nanodomains by an external electric field. This ability to manipulate the polarization behavior is crucial for potential applications in nanoelectronics.

The use of PFM and STEM allowed the research team to gain a detailed understanding of the domain patterns and polarization behavior. The results from these techniques were consistent, indicating a centered, downward convergent polarization. The phase field modeling also supported this finding, providing further evidence for the unique properties of the nanoislands. The combination of experimental and theoretical techniques used in this study provides a comprehensive understanding of the properties of the nanoislands.

Electrical Manipulation of Nanoislands

The research team has demonstrated that the nanoislands can be electrically manipulated, with the ability to reversibly switch the polarization behavior. This is achieved by applying an external electric field, which causes the center down-converging nanodomains to switch to center up-diverging nanodomains. The swirling component around the nanoisland axis remains, resulting in a chiral texture. The ability to manipulate the polarization behavior is crucial for potential applications in nanoelectronics.

The use of an external electric field allows for the reversible switching of the polarization behavior, making it possible to create devices that can be controlled and manipulated. This has significant implications for developing new technologies, such as ultra-high-density data storage and energy-efficient field-effect transistors. The research team has shown that chiral topological textures can be stabilized by shaping nanostructures in an appropriate way, providing a new approach to creating functional devices.

The electrical manipulation of nanoislands is a complex process, requiring a detailed understanding of the polarization behavior and the effects of external electric fields. The research team has made significant progress in this area, demonstrating the potential for creating devices that can be controlled and manipulated. Further research is needed to fully explore the possibilities of electrical manipulation and to develop new technologies based on these findings.

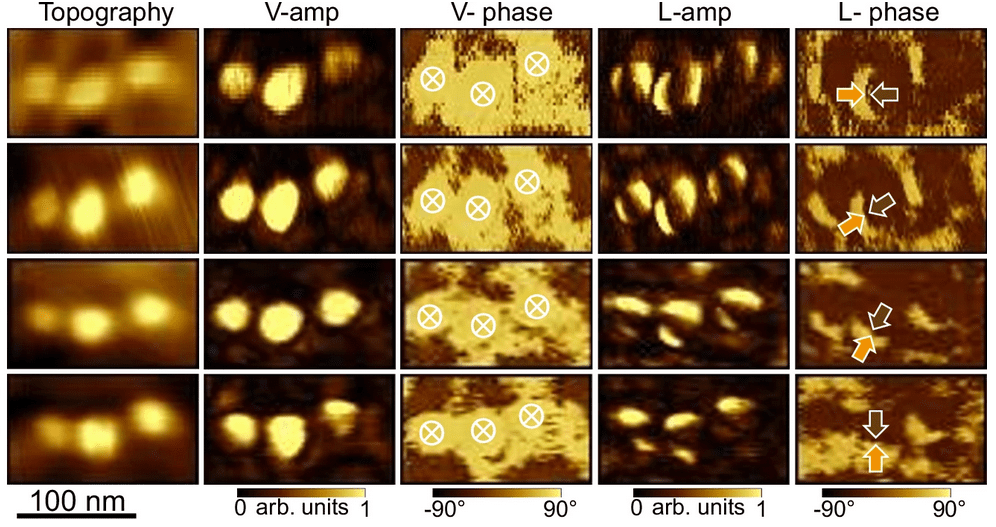

In each row the sample had a different orientation. The columns show the topography (left) and piezoresponse force microscopy (PFM) images. In the lateral PFM amplitude, the nanoislands display a pattern of dark and light regions, evoking coffee beans, which is typical for textures of center-type polar distribution. © HZB
In each row the sample had a different orientation. The columns show the topography (left) and piezoresponse force microscopy (PFM) images. In the lateral PFM amplitude, the nanoislands display a pattern of dark and light regions, evoking coffee beans, which is typical for textures of center-type polar distribution. Image Rights: HZB



Potential Applications

The research on nanoislands has significant implications for the development of new technologies. The ability to create and manipulate chiral, swirling polar textures in BaTiO3 nanostructures makes it possible to develop devices with unique properties. One potential application is in ultra-high-density data storage, where the use of nanoislands could allow for the creation of devices with significantly increased storage capacity.

Another potential application is in energy-efficient field-effect transistors. The use of nanoislands could allow for the creation of devices that are more efficient and require less power to operate. This has significant implications for the development of new technologies, such as mobile devices and renewable energy systems. The research team has demonstrated the potential for creating functional devices based on nanoislands, providing a new approach to developing innovative technologies.

The study was partially supported by the ERC Advanced Grant LUCIOLE (101098216), highlighting the importance of continued research in this area. Further funding and support are needed to fully explore the possibilities of nanoislands and to develop new technologies based on these findings. The potential applications of nanoislands are significant, and continued research is necessary to realize their full potential.
